BOPP scotch gum tape making machine

Update: 2018/1/16      View:
  • Brand:    LIDA
  • Type:    LD-1000D
  • Order Online
Introduction

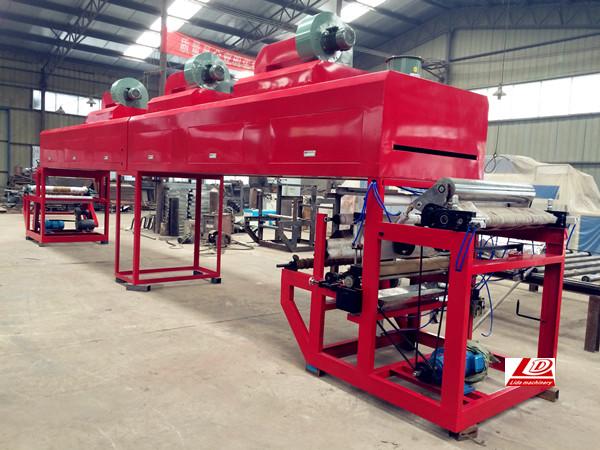

Acrylic adhesive BOPP scotch gum tape making machine

Single Sided acrylic adhesive BOPP scotch gum tape making machine can produce different sizes of clear tapes, printed tapes and color tapes with good quality.

Coating & Gravure printing:



Correction device & Four shafts slitting:



Technical parameters of adhesive BOPP gum tape making machine:

Coating width

500mm, 1000mm

Temperature control

Max 120℃

Coating method

Comma blade,transfer coating

Rewinding edge flatness

Error≤1mm

Max unwinding diameter

600mm

Printing working width

500mm, 1000mm

Max rewinding diameter

200mm

Power loading

15kw

Mini rewinding width

1 inch

framework

12# square steel tube

Drying method

Inbuilt water tank heated by electricity

Coating speed

0-40m/min

Raw material:

Production process of the adhesive BOPP gum tape making machine

Before we start the production, we need to cut the long paper core to suitable width with the paper core cutter, then we use the paper core loader to make the small paper tubes attached on the slitting shaft.

1. set the OPP film on the raw material shaft.
2. print on the film(or you don’t print).
3. glue the film.
4. dry the glue through the oven.
Finally, slit the film into small tapes or make the film into a jumbo roll.

To get a complete system, maybe you will also need other three machine: core loader, core cutter and rewinder.
