Adhesive tape slitting machine

Update: 2018/1/13      View:
  • Brand:    Lida
  • Type:    LD-1600A
  • Order Online
Introduction

Width 1300mm, 1600mm High speed Adhesive tape slitting machine

Making bopp packing tape from cutting jumbo roll



Technical parameters of this adhesive tape slitting machine:


Item

LD-500C

LD-1000C

LD-1300C

LD-1600C

Speed

180m/min

180m/min

180m/min

180m/min

Inner core diameter

1''--3''

1''--3''

3''

3''

Mini slitting width

12mm

12mm

12mm

12mm

Razor size

0.2*22*60mm

0.2*22*60mm

0.2*22*60mm

0.2*22*60mm

Max unwinding diameter

800mm

800mm

800mm

800mm

Max rewinding diameter

350mm

350mm

350mm

350mm

Power

380V,50HZ,3HP

380V,50HZ,5HP

380V,50HZ,5HP

380V,50HZ,5HP

Effective working width

500mm

1000mm

1300mm

1600mm

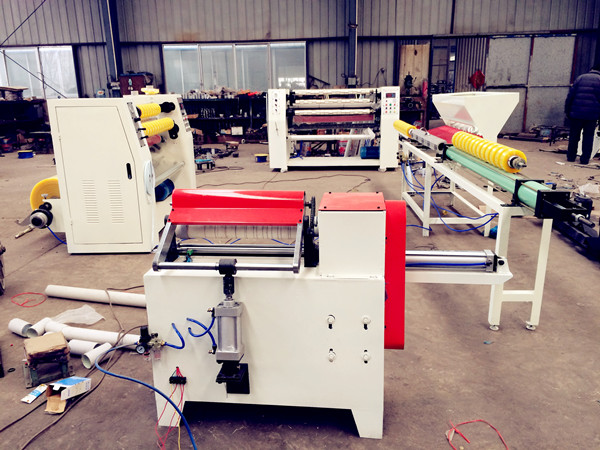

This LD-1600A adhesive tape slitting machine includes four parts: Slitting machine, core loader, core cutter and rewinder

Paper tube cutting machine: Cutting long paper core to the right size you want.

Paper tube loader: Set the paper core on the rewinding shafts.

Tape rewinder: Rewinding the imperfect tapes to good one.



Features:

1. Automatic consecutive 4-shaft changing:

when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.

2.Three-step length counter: Giving accurate pre-setting of rewinding length.

3. Pneumatic brake: Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance .

4. Automatic tension control

5. (Optional) Auto labeling and slitting stationery tape functions

6. (Optional)auto loading device for heavy jumbo roll

Packing:
