Auto single Shaft Tape Cutting Machine

Update: 2018/1/19      View:
  • Brand:    LIDA
  • Type:    LD-1300S
  • Order Online
Introduction

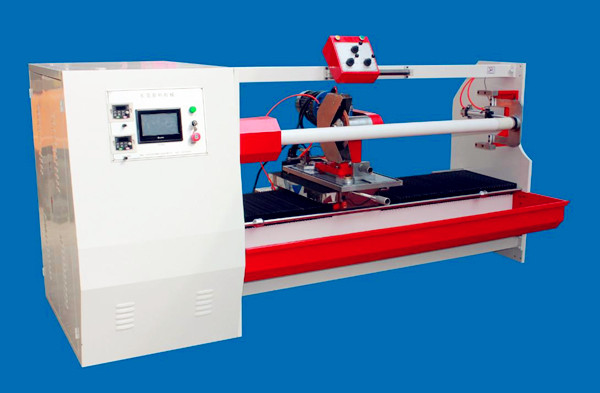

Auto single Shaft Tape Cutting Machine


For cutting BOPP, PVC, PE, EVA, 3M, Mylar, masking, foam, cloth, double sticky, Kraft, aluminum duct tape etc from log roll into small sizes tapes.

Feature of this Auto single Shaft Tape Cutting Machine:

20 modes for size setting each time & auto changing when cutting

1)PLC system with LCD touch screen control panel

2)Auto liquid silicon water spray cooling system

3)AC motors for cutting blade and cutting shaft with inverters speed changing

4)Servo motor for cutting,more accurate position

5)Sliding system,high precision liner sliding track and ball screw

6)Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness

7)Single shaft, single blade

Technical parameters of this Auto single Shaft Tape Cutting Machine:

Effective working width

1300mm

Max cutting diameter

400mm

Min slitting width

1mm

Paper core diameter

25.4-76.2mm

Circular blade diameter

Ф250 300 350 450

Cutting accuracy

+/-0.1mm

Size

3200*1200*1650mm
